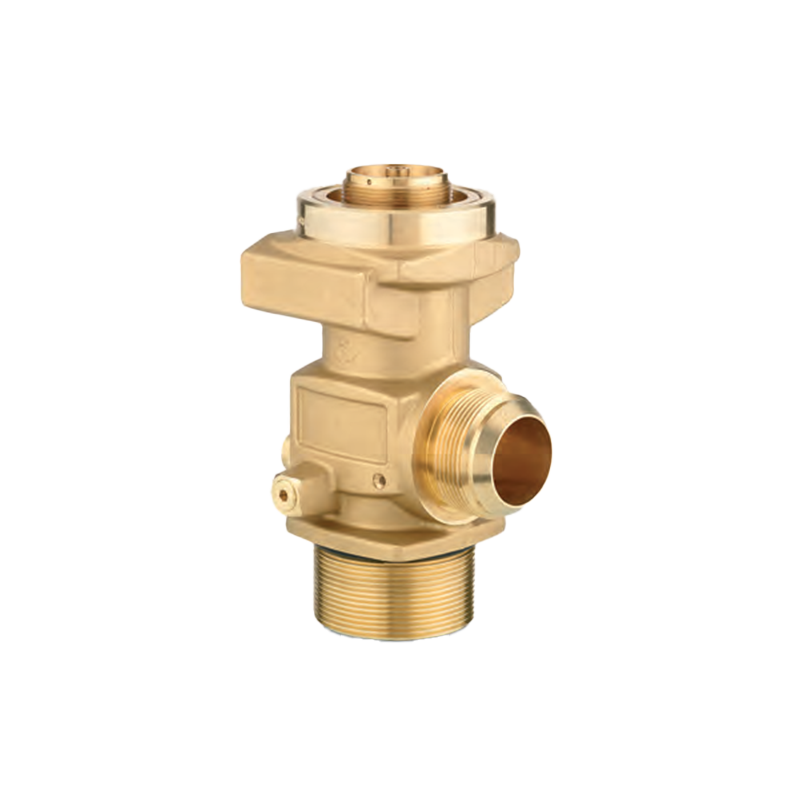

RX5112 VALVES FOR 30-50 LITER CYLINDERS
Orifice Ø33 mm.
High Performance cylinder valves for fixed fire extinguishing systems.
Rotarex is the world leader in high-performance cylinder valves for fixed extinguishing systems as well as Ultra High Purity, Medical, Cryogenic, Automotive and LPG applications. They leverage 90-year expertise, vast R&D infrastructure and global scale to provide the most technically advanced and dependable fire suppression valves in the market. Trust Rotarex valves to perform when it most counts.
Large-orifice clean agent valves with flexibility of actuation methods. For all Clean Agent installations.

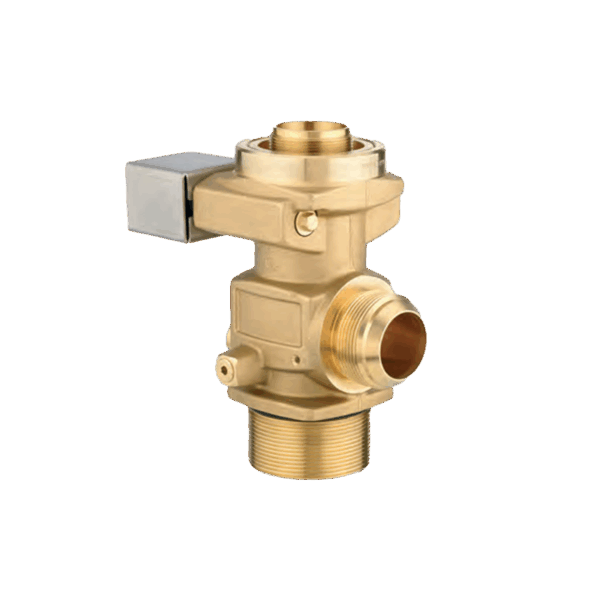

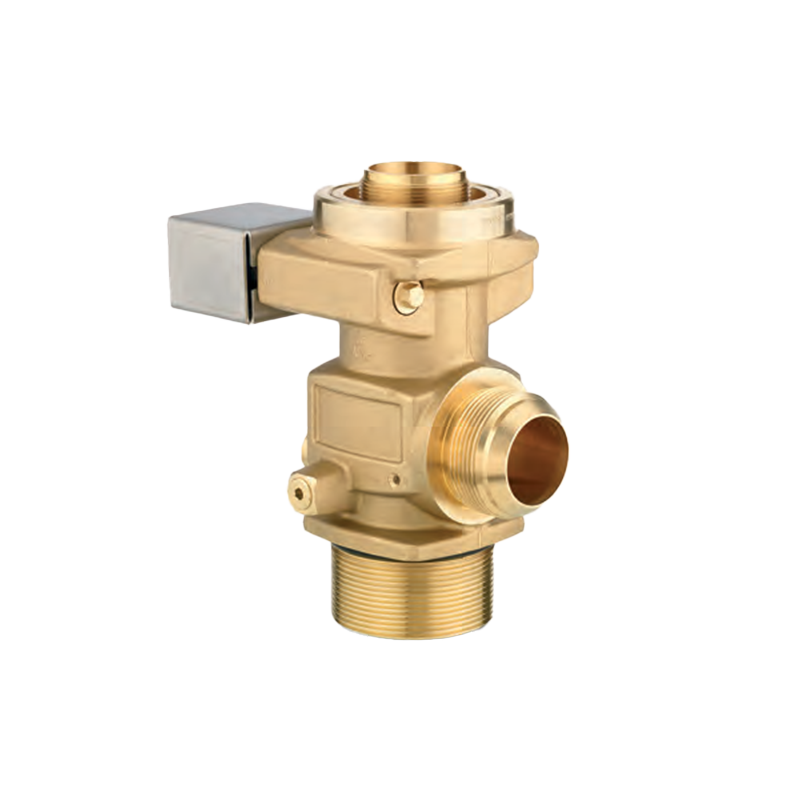

Integrated solenoid option available
| Type of Valve: | B04812000 | Orifice size: | 33 mm | |
| Art. No: | 302001 | Outlet connection: | 2 ½" male | |
| Standard Burst Disc: | 40/50 bar or 88/89 bar | inlet connection: | 1 7/8" male | |
| Working Pressure Max: | 25 and 50 bar | Temperature Range: | -20ºC to +60ºC | |
| Body Material: | Brass | Release Device Connection: | M 42 x 1,5 |
