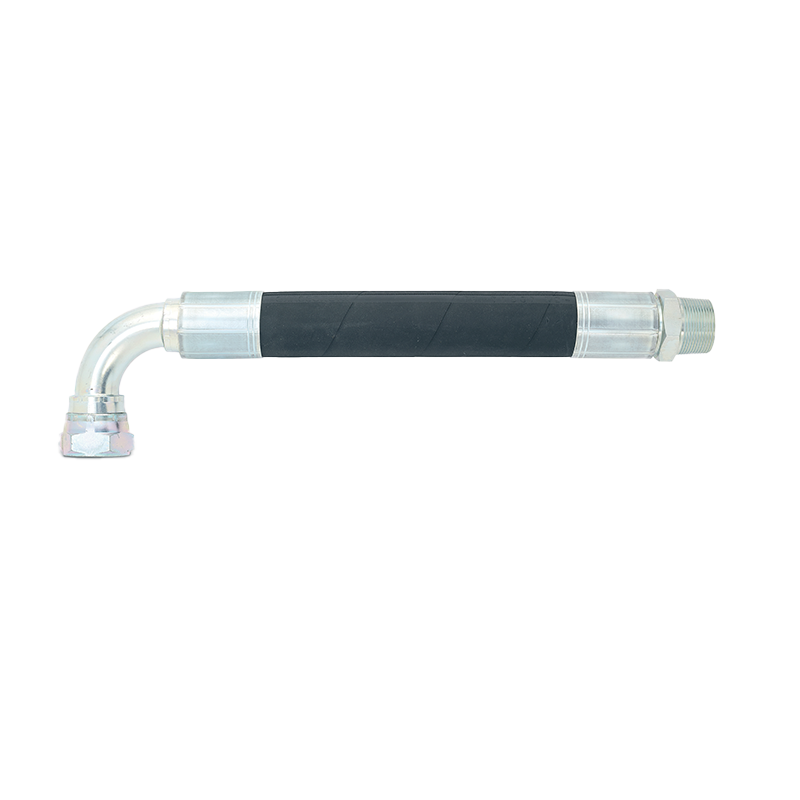

Discharge Hose 500 mm with elbow
For B0482 valves and 30-50l liter cylinders
Hose to connect the cylinder valve to the manifold in fixed fire suppression systems
Delivered with plastic cap for closing the insert gasket nut.
– Valve inlet connection: with 90º elbow connection
– Check valve outlet connection: with straight connection
Check valve (art no 304101) must be ordered separately. Attached between the hose and manifold.
Compliant with the Construction Products Regulation (CPR) V3 Oct. 2014
| Art. No: | 304001 | Valve Connection: | Elbow 1 7/8"-12-UN | |
| Length: | 500 mm | Check Valve Connection: | R 1 ½" | |
| Working Pressure: | 53 Bar | Burst Pressure: | 159 Bar | |
| Bending Radius: | 510 mm | Torque: | 30-40 Nm | |
| Material: | Synthetic rubber oil resistant | Temperature Range: | -40ºC to 100ºC | |
| Norm: | EN 853 2 SN |
